24 x 8 N-12 Dual Wall Tee Nyloplast Detailv

Filename:
24 x 8 N-12 Dual Wall Tee Nyloplast Detailv.dwg

Download Document (dwg)
24 x 8 N-12 Dual Wall Tee Nyloplast Detailv

This document is the 24 x 8 N-12 Dual Wall Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

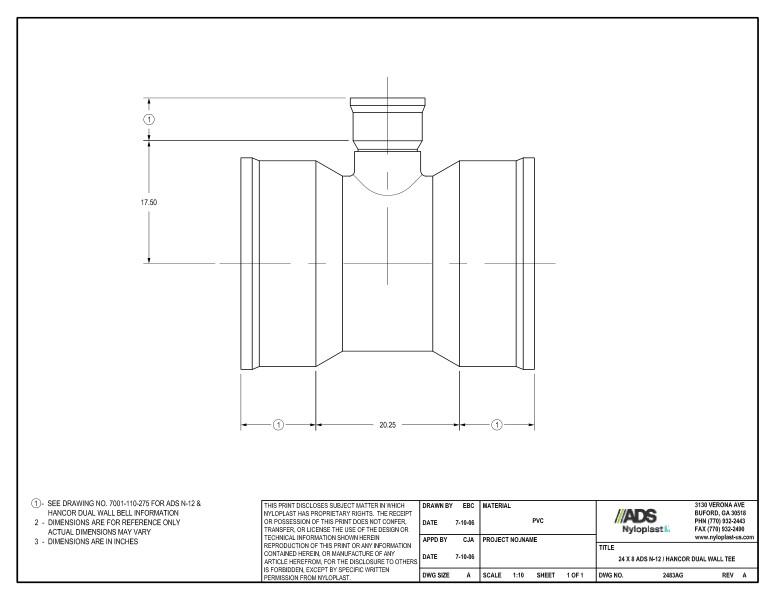

An illustration showing the dimensions is provided.

24 x 8 N-12 Dual Wall Tee Nyloplast Detailv
