30" Adapter - HP Bell x SWR Spigot Nyloplast Detail

This document is the 30” Adapter - HP Bell x SWR Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Dual Wall Bell for more information. A note on dimension 2 references a drawing for SWR spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

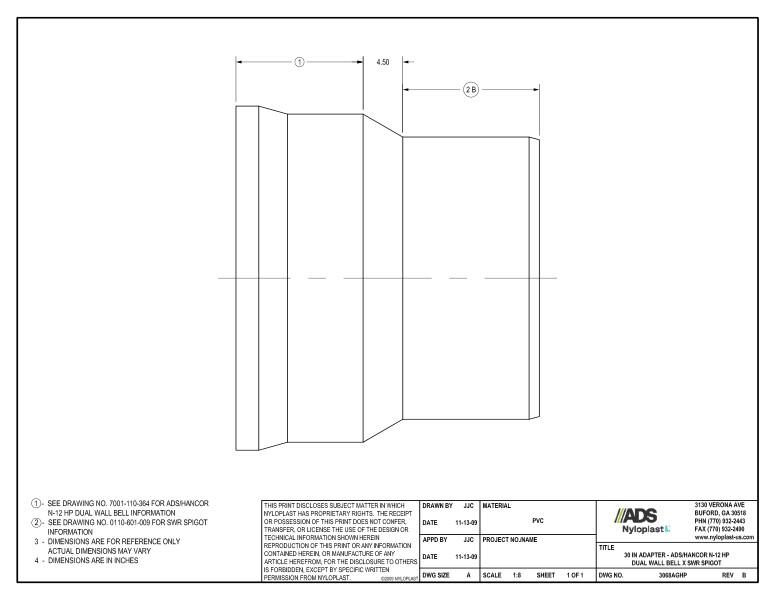

An illustration showing the dimensions is provided.

30" Adapter - HP Bell x SWR Spigot Nyloplast Detail
