12" AdvanEdge Flat Outlet (AdvanEdge Fittings)

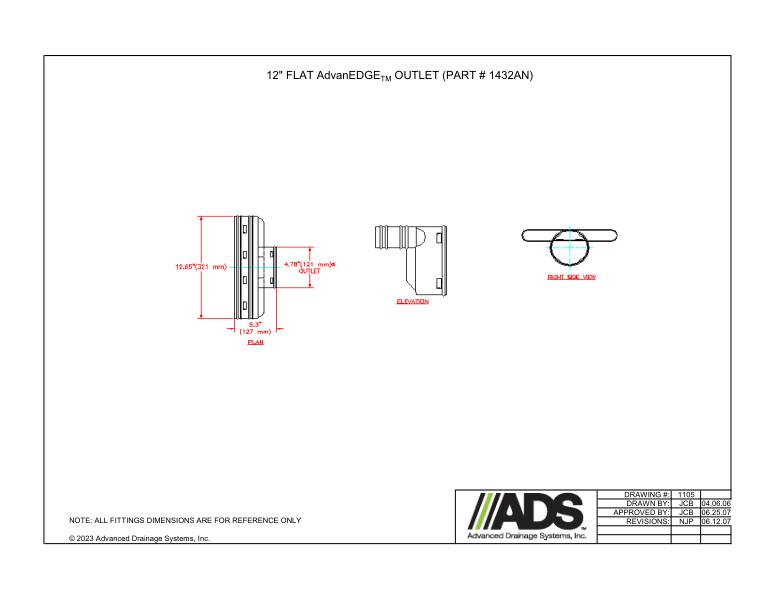

This document is the 12” AdvanEdge Flat Outlet (AdvanEdge Fittings). Plan, elevation and right side view diagrams shown.

The 12” Flat AdvanEDGE Outlet is shown 3 ways. The Plan view has the dimensions of the outlet. The Elevation and Right Side View details are also shown.

All fittings dimensions are for reference only.
