8" Standard Grate Assembly (Inline Drain) Nyloplast Detail

Filename:
8" Standard Grate Assembly (Inline Drain) Nyloplast Detail.pdf

8" Standard Grate Assembly (Inline Drain) Nyloplast Detail

This document is the 8" Standard Grate Assembly (Inline Drain) Nyloplast Detail. It shows the nyloplast ductile grate with dimensions.

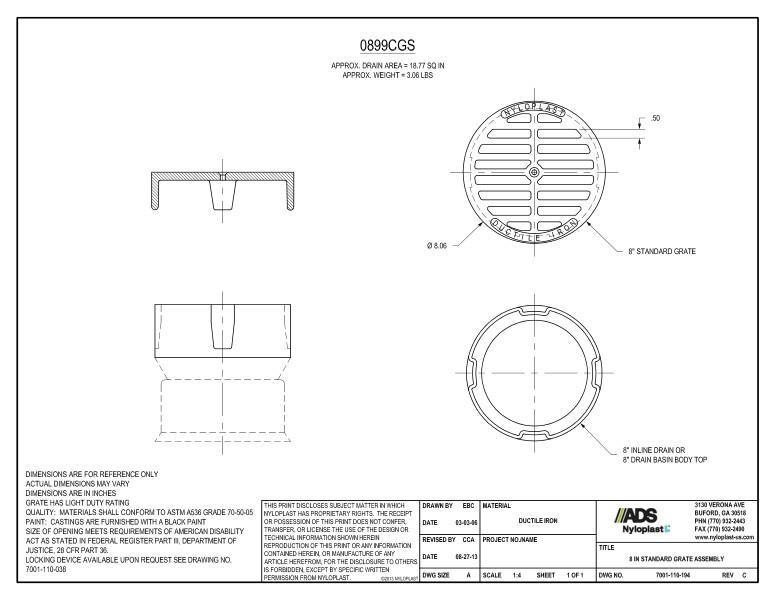

The illustration shows the nyloplast 8” standard grate with dimensions for approximate drain area of 18.77 SQ inches and approximate weight of 3.06 LBS. A top and side view is shown. 8” inline drain or 8” drain basin body top illustration included.

Notes detail that dimensions are for reference only and in inches. Grate has light duty rating. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. Size of opening meets requirements of American Disability Act. The locking device is available upon request.
