12" Adapter - N-12 Dual Wall Bell x Gasketed SWR Bell Nyloplast Detail
Filename:
12" Adapter - N-12 Dual Wall Bell x Gasketed SWR Bell Nyloplast Detail.pdf
![12" Adapter - N-12 Dual Wall Bell x Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/5c7cb262f66e4029/webimage-12-Adapter-N-12-Dual-Wall-Bell-x-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

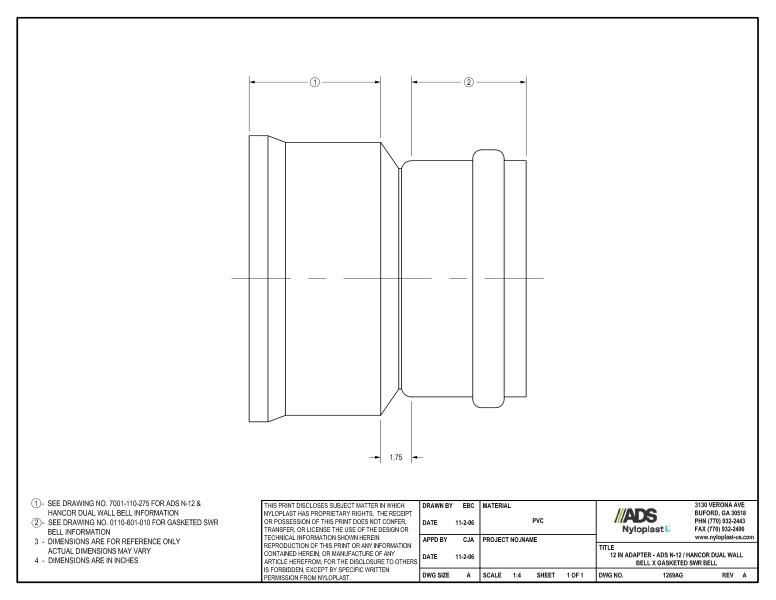

This document is the 12” Adapter - N-12 Dual Wall Bell x Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references drawing for gasketed SWR bell information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
