2' x 2' Family Nyloplast Detail

Filename:
2' x 2' Family Nyloplast Detail .dwg

2' x 2' Family Nyloplast Detail

This document is the 2’ x 2’ Family Nyloplast Detail. Details of various nyloplast illustrations shown.

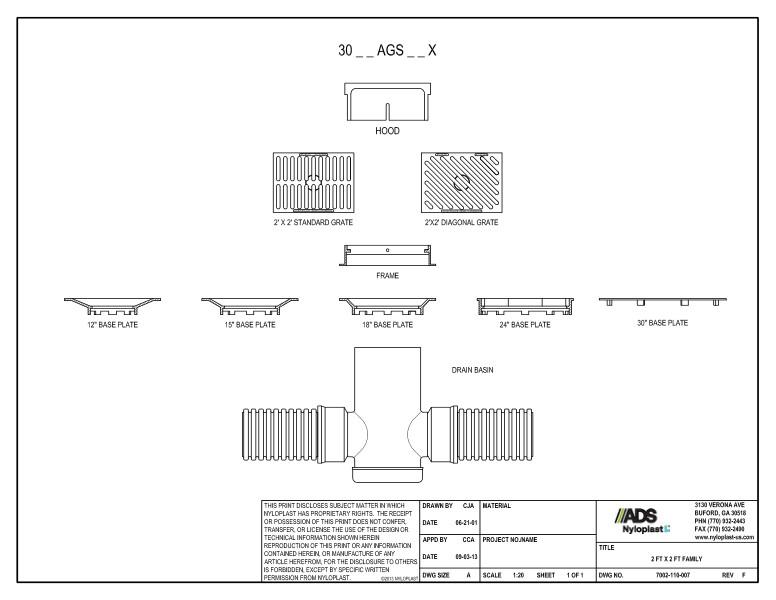

Illustrations show the hood, 2’ x 2’ standard grate, 2’ x 2’ diagonal grate, frame, 12” base plate, 15” base plate, 18” base plate, 24” base plate, 30” base plate and drain basin.
