18 x 12 HP Tee Nyloplast Detail

Filename:
18 x 12 HP Tee Nyloplast Detail.dwg

This document is the 18 x 12 HP Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Dual Wall Bell for more information. Note 2 refers to drawing for water tight SWAGE joint detail. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

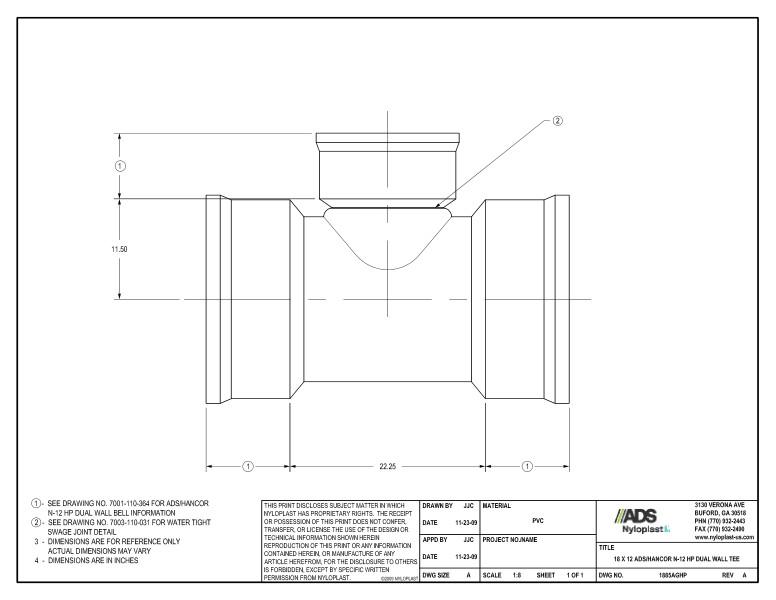

An illustration showing the dimensions is provided.
