18", 24", & 30" Frame & Grate Example Nyloplast Detail

Filename:
18", 24", & 30" Frame & Grate Example Nyloplast Detail.pdf

Download Document (pdf) View in Browser
18", 24", & 30" Frame & Grate Example Nyloplast Detail

This document is the 18”, 24" & 30” Frame and Grate Example Nyloplast Detail. It shows the nyloplast drain, basin frame and grate with dimensions.

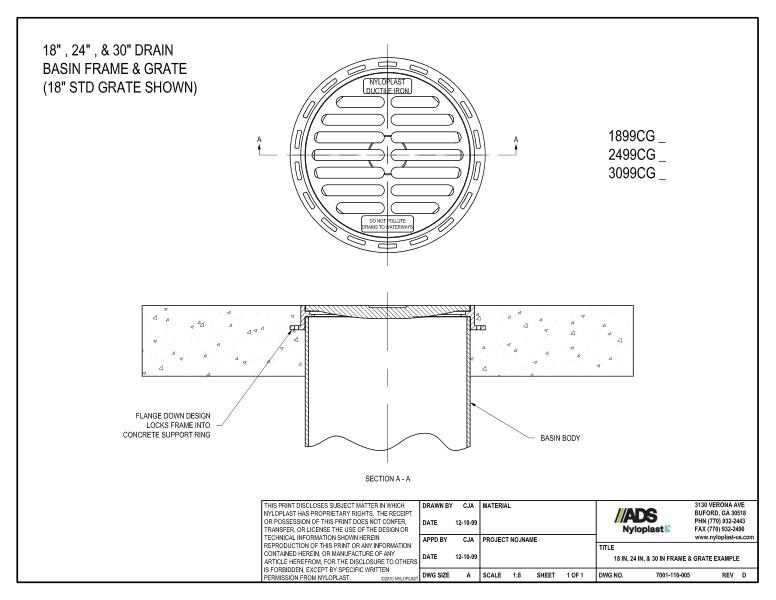

One illustration shows the top down view of the 18” nyloplast grate. A second basin body illustration shows the flange down design that locks frame into concrete supporting ring.

18", 24", & 30" Frame & Grate Example Nyloplast Detail
