10" - 24" Drop In Grate Locking Options Nyloplast Detail

Filename:
10" - 24" Drop In Grate Locking Options Nyloplast Detail.pdf

Download Document (pdf) View in Browser
10" - 24" Drop In Grate Locking Options Nyloplast Detail

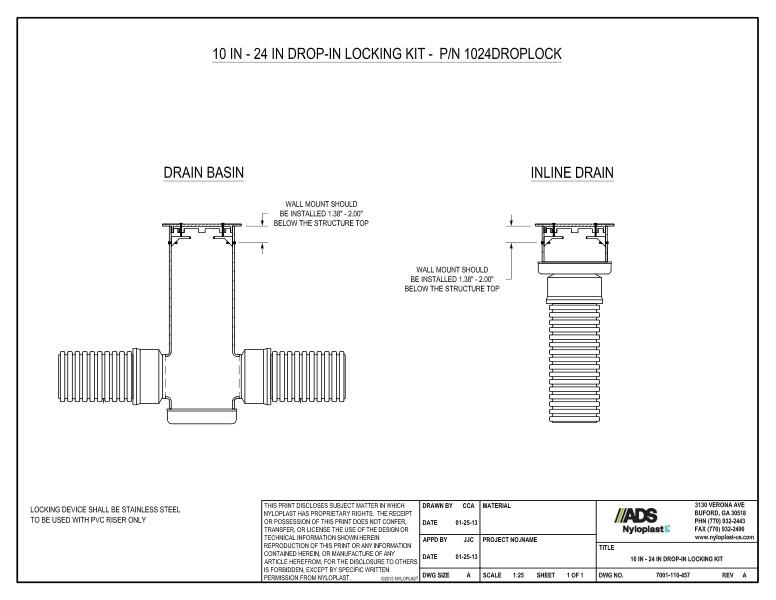

This document is the 10” - 24" Drop In Grate Locking Options Nyloplast Detail. It shows the drain basin and inline drain illustrations with descriptions.

The illustration shows the 10” - 24" Drop In Locking Kit. Both the drain basin and inline drain note that the wall mount should be installed below the structure top.

Locking device shall be stainless steel to be used with PVC riser only.

10" - 24" Drop In Grate Locking Options Nyloplast Detail
