18" x 4" - 36" x 8" Reducing Tap Tee Soil Tight/Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings)
Filename:
18" x 4" - 36" x 8" Reducing Tap Tee Soil Tight/Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings).pdf
This document is the 18" x 4" – 36” x 8” Reducing Tap Tee Soil Tight/Water Tight Connection (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.

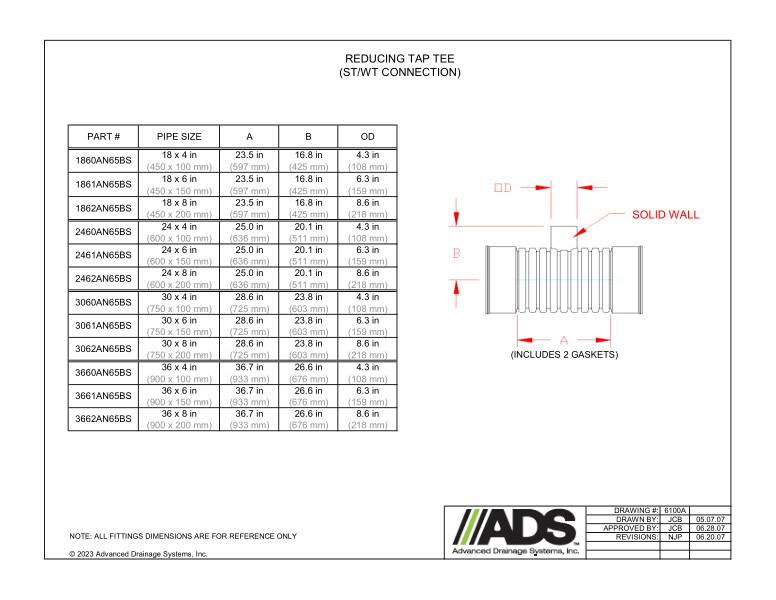

The Reducing Tap Tee (ST/WT Connection) diagram is shown with solid wall and A/B/OD dimensions. It includes 2 gaskets.
A table with the information for part number, pipe size and A/B/OD sizes is provided.
All fittings dimensions are for reference only.
