15" HP Elbow - 45 Degree Nyloplast Detail

Filename:
15" HP Elbow - 45 Degree Nyloplast Detail.dwg

Download Document (dwg)
15" HP Elbow - 45 Degree Nyloplast Detail

This document is the 15” HP Elbow – 45 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

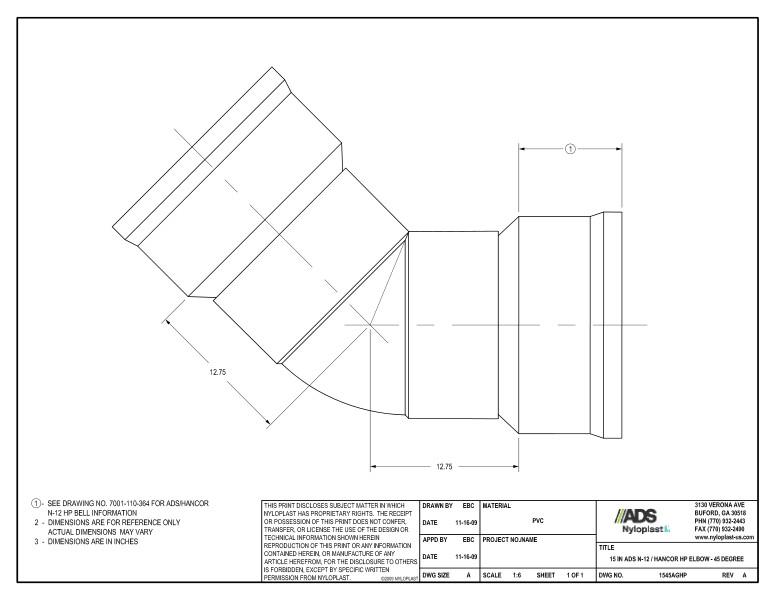

An illustration showing the dimensions is provided.

15" HP Elbow - 45 Degree Nyloplast Detail
