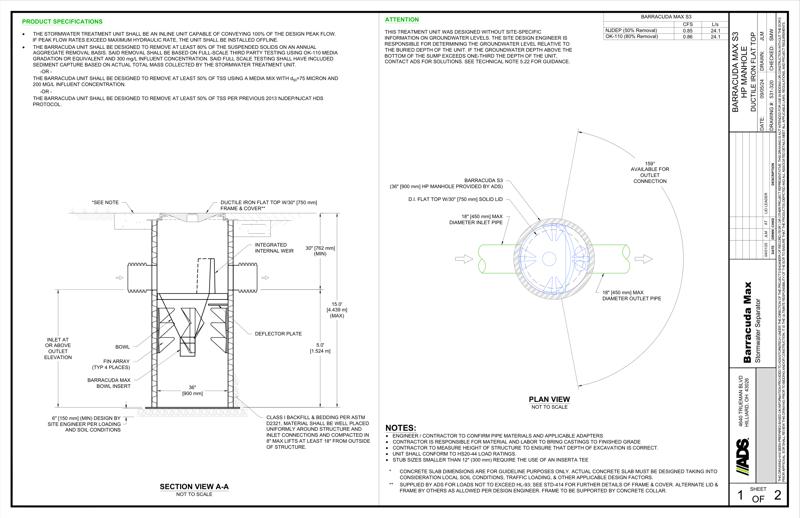

This document is the Barracuda Max S3 HP Manhole DI Flat Top Detail. Product specifications, plan view and installation are discussed.

The stormwater treatment unit shall be an inline unit capable of conveying 100% of the design peak flow. It will remove 80% of the suspended solids on an average aggregate removal basis. A section view shows the components of the system. The plan view shows the Barracuda S3 manhole, inlet pipe, outlet pipe and D.I. flat top solid lid.

The HP manhole with ductile iron flat frame installations diagram shows the lid/frame, concrete collar, butyl sealant, asphalt or turf, Class I bedding, Mar-Mac coupler, triple wall polypropylene riser and various minimums and dimensions.

7 notes with additional information provided.
