8" - 36" Minimum Angle Between Adapters Nyloplast Detail

Filename:
8" - 36" Minimum Angle Between Adapters Nyloplast Detail .dwg

Download Document (dwg)
8" - 36" Minimum Angle Between Adapters Nyloplast Detail

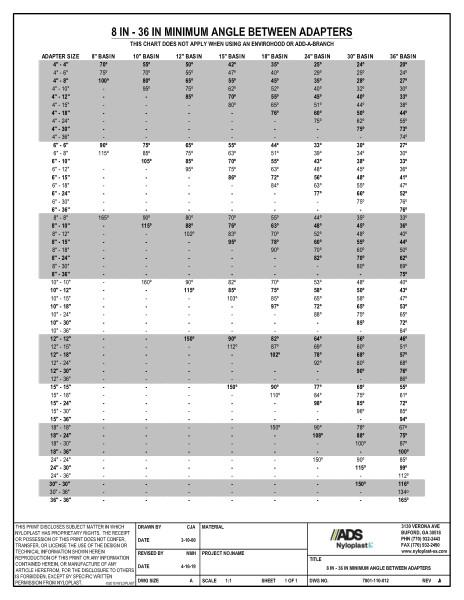

This document is the 8" - 36" Minimum Angle Between Adapters Nyloplast Detail. Chart with adapter size and basin dimensions included.

The chart features adapter size 4” – 4” through 36” – 36”. Basin sizes 8” – 36” with dimensions are listed.

A note says that the chart does not apply when using an envirohood or add-a-branch.

8" - 36" Minimum Angle Between Adapters Nyloplast Detail
