18" N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail

Filename:
18" N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail.pdf

Download Document (pdf) View in Browser

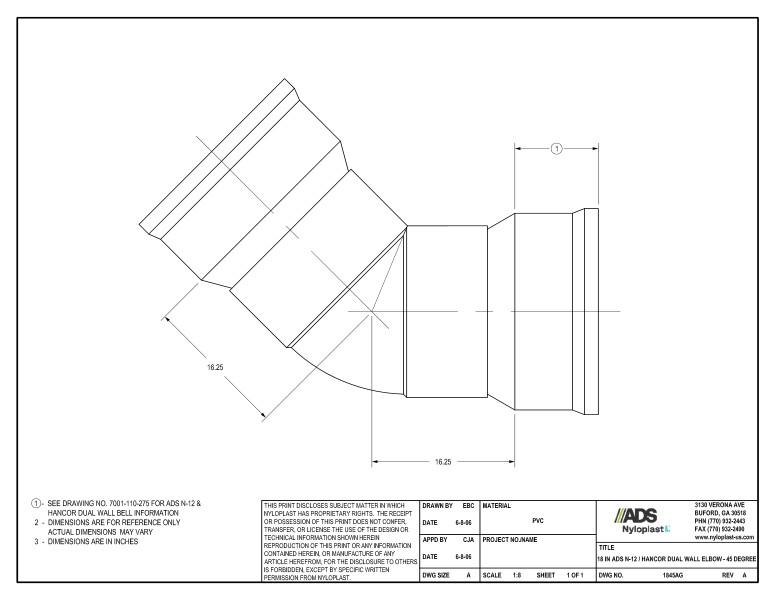

18" N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail

This document is the 18” N-12 Dual Wall Elbow – 45 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

18" N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail
