This document is the 15" Dome Grate Assembly Nyloplast Detail. It shows the nyloplast ductile dome grate with dimensions.

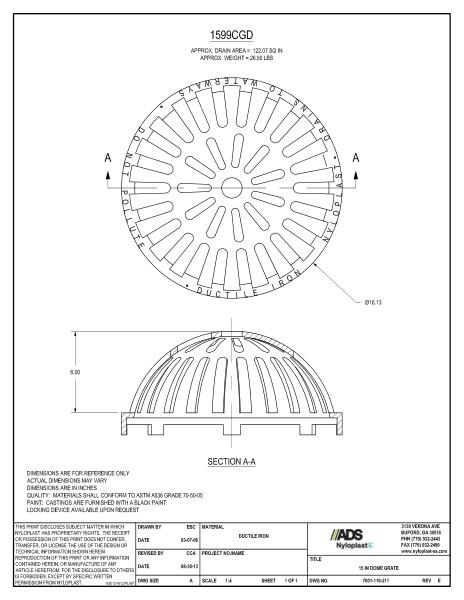

The illustration shows the nyloplast grate with dimensions for approximate drain area of 122.07 SQ inches and approximate weight of 26.50 LBS. A top and side view is shown.

Notes detail that dimensions are for reference only and in inches. Materials shall conform to ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
