EcoPure Standard Offline Details
Filename:
EcoPure Standard Offline Details.pdf
![EcoPure Standard Offline Details](https://assets.adspipe.com/m/7011ba2305eabfa5/webimage-EcoPure-Standard-Offline-Details.jpg)

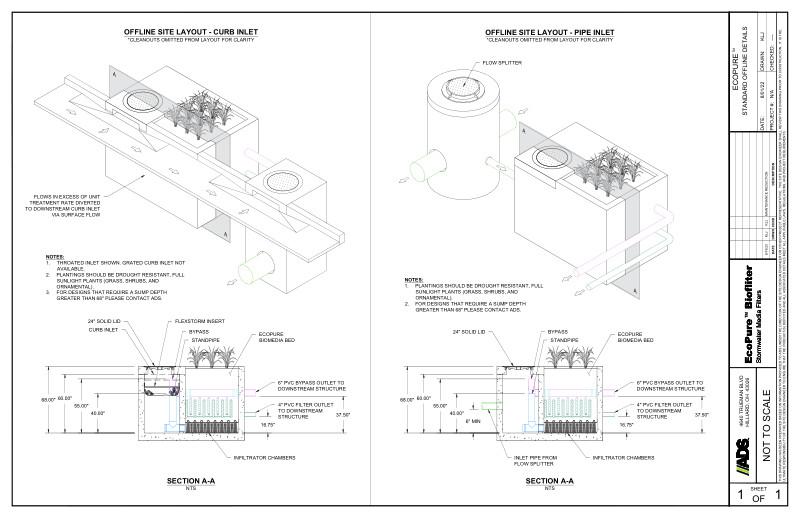

This document is the EcoPure Standard Offline Details. The systems shown are offline site layouts for curb inlets and pipe inlet. Details + dimensions included.
Cleanouts are omitted from layouts for clarity.
The offline site layout for curb inlets shows the flow in excess of unit treatment diverted to downstream curb inlet via surface flow. Notes state that the throat inlet is shown. Planting should be drought resistant, full sunlight plants.
For designs that require a sump depth greater than 68”, contact ADS for information.
The detail for the offline site layout for curb inlets shows the solid lid, curb inlet, flexstorm insert, bypass, standpipe, EcoPure biomedia bed, cleanout, PVC bypass outlet to downstream structure, PVC filter outlet to downstream structure and infiltrator chambers.
The offline site layout for pipe inlet shows the flow splitter. Notes state that planting should be drought resistant, full sunlight plants. For designs that require a sump depth greater than 68”, contact ADS for information.
The detail for the offline site layout for pipe inlet shows the solid lid, bypass, standpipe, EcoPure biomedia bed, cleanout, PVC bypass outlet to downstream structure, PVC filter outlet to downstream structure, inlet pipe from flow splitter and infiltrator chambers.
