15 x 10 N-12 Dual Wall Increaser Nyloplast Detail
Filename:
15 x 10 N-12 Dual Wall Increaser Nyloplast Detail.dwg
![15 x 10 N-12 Dual Wall Increaser Nyloplast Detail](https://assets.adspipe.com/m/7c6d07f43fe7f90a/webimage-15-x-10-N-12-Dual-Wall-Increaser-Nyloplast-Detail.jpg)

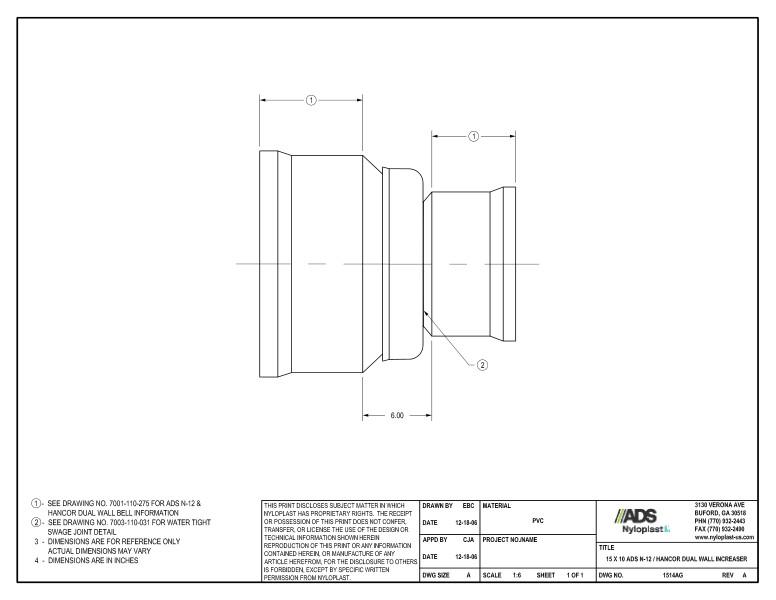

This document is the 15 x 10 N-12 Dual Wall Increaser Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references a drawing for water tight SWAGE joint detail. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
