1205 USGA Sand Green Profile (Perf HDPE) Detail

Filename:
1205 USGA Sand Green Profile (Perf HDPE) Detail.dwg

Download Document (dwg)
1205 USGA Sand Green Profile (Perf HDPE) Detail

This document is the drawing for the 1205 USGA Sand Green Profile (Perf HDPE) Detail

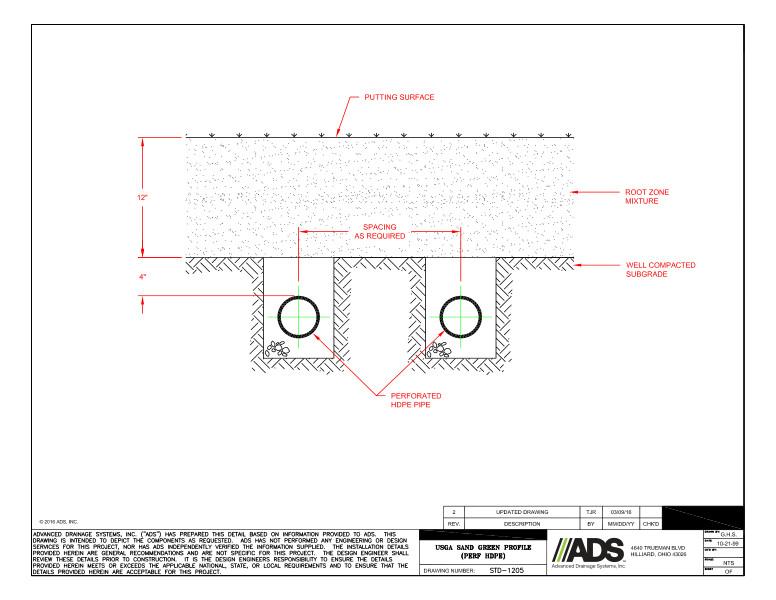

The Sand Green Profile is a drawing showing the details of where the putting surface is, where the root zone mixture goes, the well-compacted subgrade and the required spacing for the perforated HDPE pipe below that. This drawing is provided for reference.

1205 USGA Sand Green Profile (Perf HDPE) Detail
