8" Dome Locking Grate Assembly Nyloplast Detail

Filename:
8" Dome Locking Grate Assembly Nyloplast Detail.dwg

Download Document (dwg)
8" Dome Locking Grate Assembly Nyloplast Detail

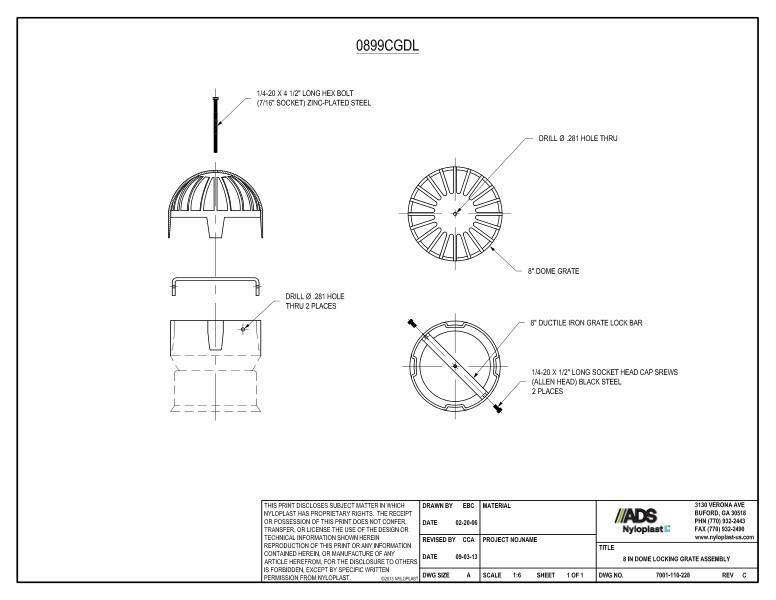

This document is the 8" Dome Locking Grate Assembly Nyloplast Detail. It shows the illustrations with descriptions.

The side view illustration shows the Dome Locking Grate with descriptions for ¼-20 x 4 ½” long hex bolt zinc-plated steel, and drill hole thru 2 places. The top down views show drill hole, 8” dome grate, 8” ductile iron grate lock bar and ¼-20 x 4 ½” long socket head cap screws (allen head) black steel in 2 places.

8" Dome Locking Grate Assembly Nyloplast Detail
