18" - 30" Round Grate/Cover Extension Ring Nyloplast Detail

Filename:
18" - 30" Round Grate/Cover Extension Ring Nyloplast Detail.pdf

Download Document (pdf) View in Browser
18" - 30" Round Grate/Cover Extension Ring Nyloplast Detail

This document is the 18" - 30" Round Grate/Cover Extension Ring Nyloplast Detail. It shows the illustrations with chart and notes.

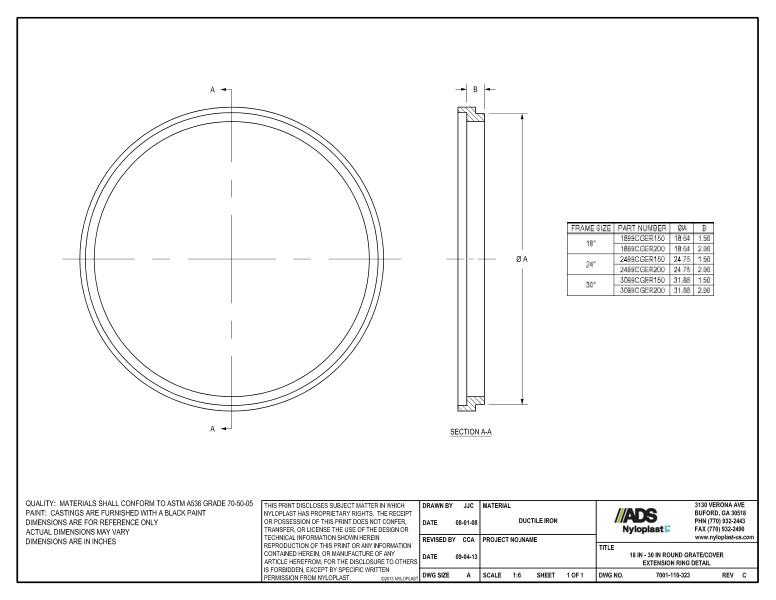

The top and side view illustrations show the Grate/Cover with chart detailing frame size, part number A & B columns.

Notes detail that dimensions are for reference only and in inches. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Castings are furnished with a black paint.

18" - 30" Round Grate/Cover Extension Ring Nyloplast Detail
