This document is the HP Storm Wyes Fittings Manual. Tables with pipe size and diagrams of various wyes with descriptions included.

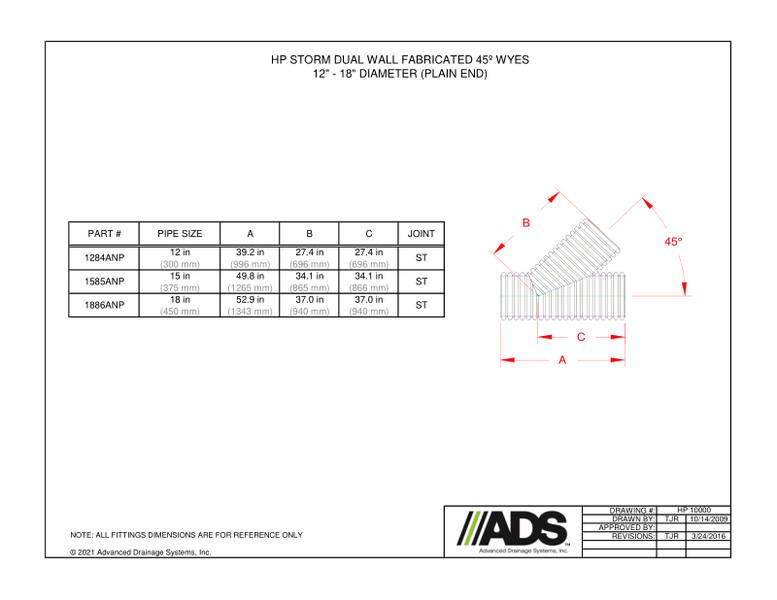

The information for the HP Storm Dual Wall Fabricated 45 degree Wyes 12”-18” diameter (Plain End) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. Diagram included.

The HP Storm Dual Wall Fabricated 45 degree Wyes 12”-18” diameter (Bell/Bell) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. Diagram with WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 45 degree Wyes 15”x12”-36”x18” diameter (Plain End) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. Diagram included.

The HP Storm Dual Wall Fabricated 45 degree Wyes 42”x12”-60”x24” diameter (Plain End) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. Diagram included.

The HP Storm Dual Wall Fabricated 45 degree Wyes 15”x12”-24”x12” diameter (Bell/Bell) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. Diagram with WT includes 2 gaskets.

The HP Storm Dual Wall Fabricated 45 degree Wyes 30”x12”-60”x24” diameter (IB Bell/IB Spigot/Bell) is shown with a chart that lists the values for Part number, pipe size, A/B/C and Joint. Diagram with WT includes 3 gaskets.
