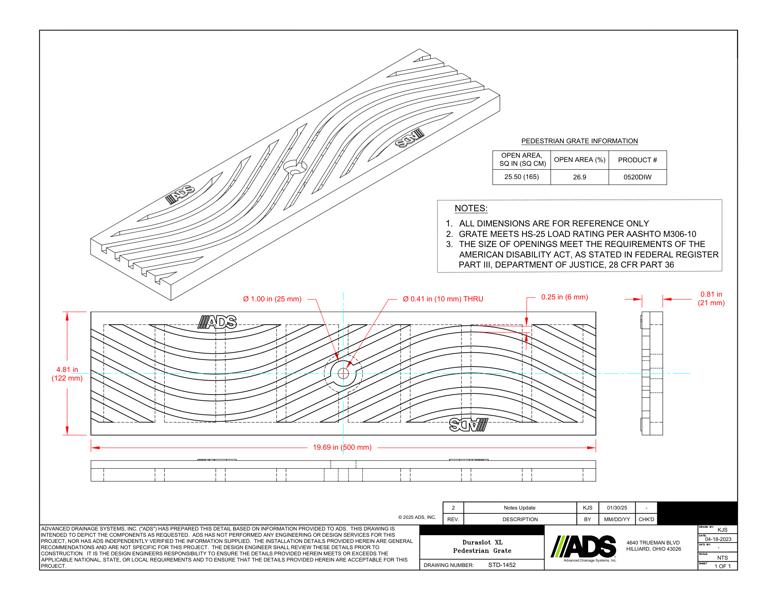

This document shows the 1452 Duraslot XL Pedestrian Grate. Details of the Duraslot pedestrian grate with dimensions and information table provided.

The top detail shows the Duraslot pedestrian grate. The grate detail shows the various height and length dimensions for the grate and connection.

A chart has the pedestrian grate information for open area in square inches, open area percentage and product number.
