2' x 3' Nyloplast Roll Curb Inlet Family Detail

Filename:
2' x 3' Nyloplast Roll Curb Inlet Family Detail.dwg

2' x 3' Nyloplast Roll Curb Inlet Family Detail

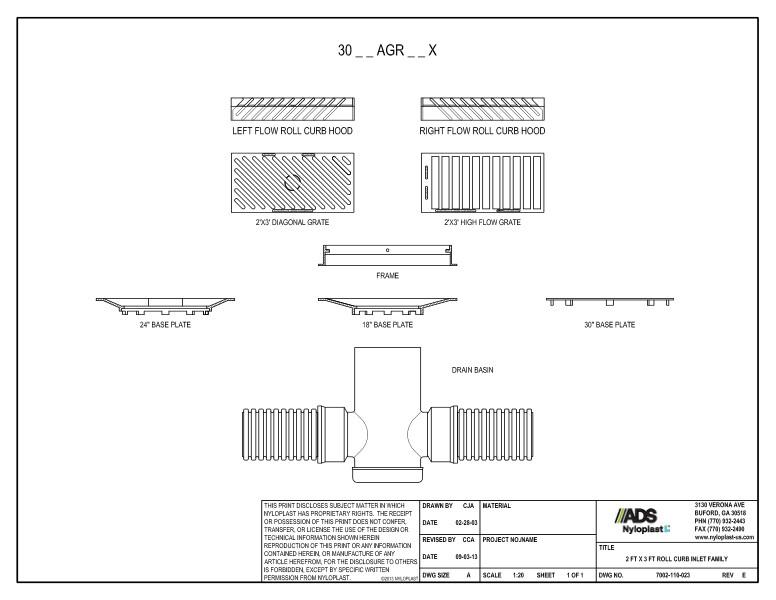

This document is the 2' x 3' Nyloplast Roll Curb Inlet Family Detail. It shows the left & right flow roll curbs and various component illustrations.

One illustration shows the left flow roll curb hood and its 2’ x 3’ diagonal grate, another shows the right flow roll curb hood and its 2’ x 3’ high flow grate. Below that is the frame with 24”, 18” and 30” base plates for the drain basin.
