8" Bronze Grate Assembly (Inline Drain) Nyloplast Detail

Filename:
8" Bronze Grate Assembly (Inline Drain) Nyloplast Detail.dwg

Download Document (dwg)
8" Bronze Grate Assembly (Inline Drain) Nyloplast Detail

This document is the 8" Bronze Grate Assembly (Inline Drain) Nyloplast Detail. It shows the nyloplast grate with dimensions.

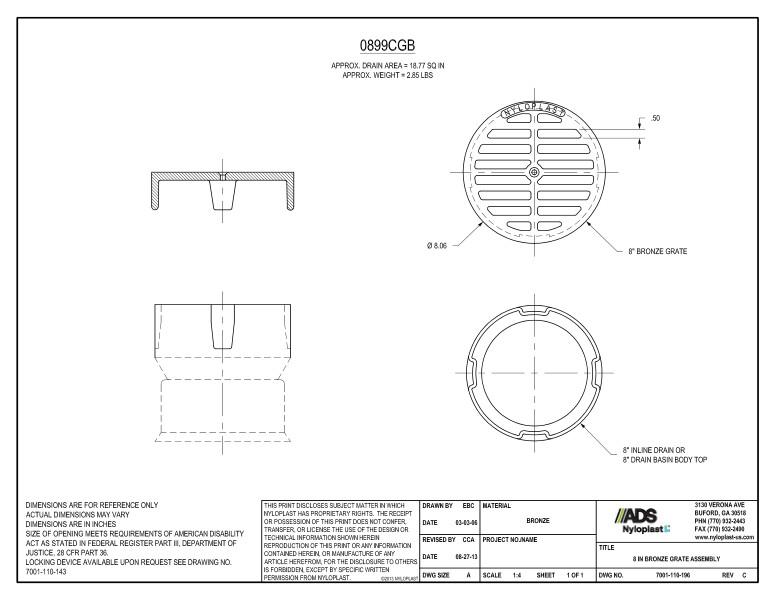

The illustration shows the nyloplast 8” Bronze grate with dimensions for approximate drain area of 18.77 SQ inches and approximate weight of 2.85 LBS. A top and side view is shown. 8” inline drain or 8” drain basin body top illustration included.

Notes detail that dimensions are for reference only and in inches. Size of opening meets requirements of American Disability Act. The locking device is available upon request.

8" Bronze Grate Assembly (Inline Drain) Nyloplast Detail
