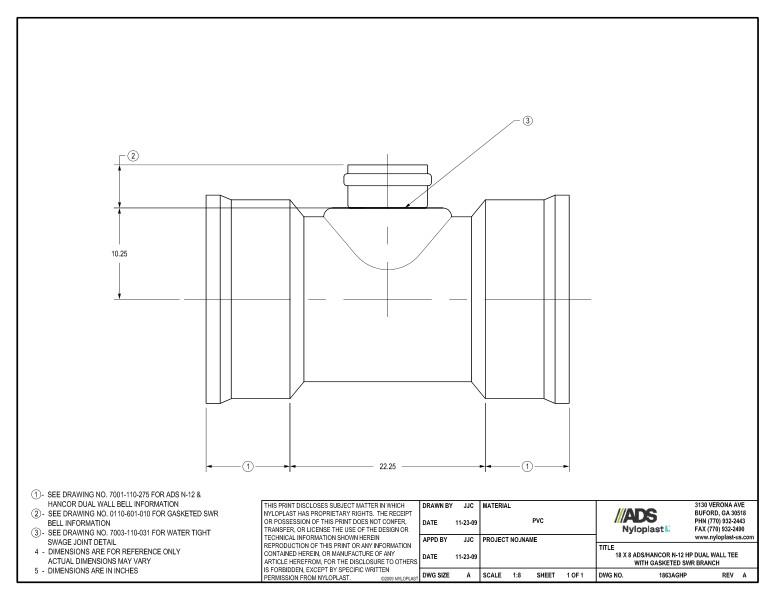

This document is the 18 x 8 HP Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 Dual Wall Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 refers to drawing for water tight SWAGE joint detail. Note 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.
