PC Inlet Filter (Nyloplast Unit) Detail

This document is the PC Inlet Filter (Nyloplast Unit) Detail. A Flexstorm PC inlet filter detail with descriptions and dimensions shown.

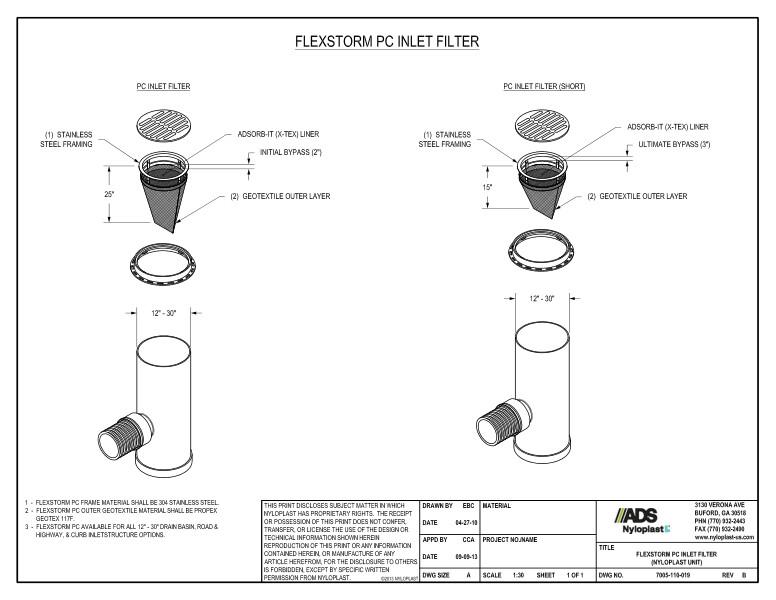

An illustration shows the PC Inlet Filter absorb-IT (X-TEX) liner, stainless steel framing, initial bypass and geotextile outer layer. A short PC Inlet Filter detail shows absorb-IT (X-TEX) liner, stainless steel framing, ultimate bypass and geotextile outer layer.

Note 1 states that Flexstorm PC frame material shall be 304 stainless steel. Note 2 explains that the Flexstorm PC outer geotextile material shall be propex geotex 117F. Lastly, Flexstorm PC available for all 12” – 30” drain basin, road & highway and curb inlet structure options.

PC Inlet Filter (Nyloplast Unit) Detail
