208 Connection Drop Manhole 12-24in SaniTite HP Detail

Filename:
208 Connection Drop Manhole 12-24in SaniTite HP Detail.pdf

Download Document (pdf) View in Browser
208 Connection Drop Manhole 12-24in SaniTite HP Detail

This document is the 208 Connection Drop Manhole 12-24in SaniTite HP Detail. A diagram with unit descriptions provided.

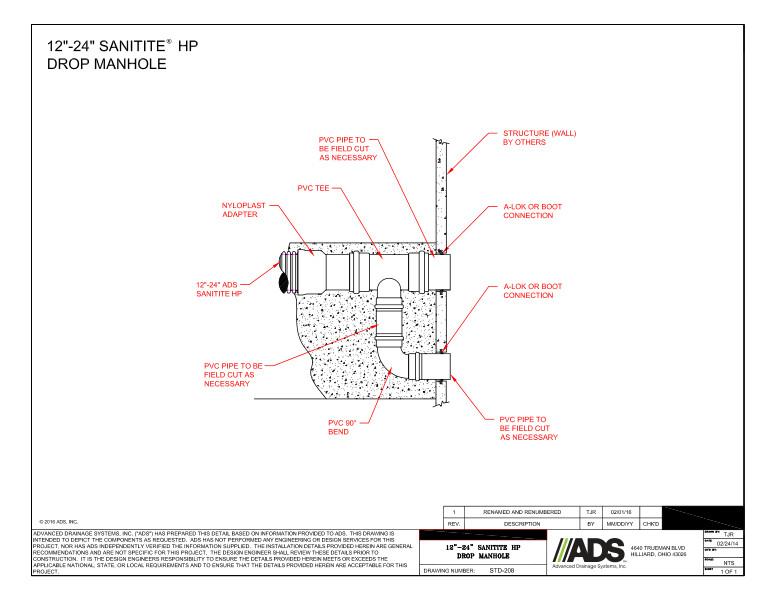

The manhole diagram shows the PVC pipe to be field cut, PVC Tee. Nyloplast adapter, 12-24in ADS SaniTite HP, structure wall, A-LOK or boot connection and PVC 90 degree bend.

208 Connection Drop Manhole 12-24in SaniTite HP Detail
