This document is the HDPE Dual Wall Miscellaneous Fittings Manual. Downspout adapters with illustrations and table provided.

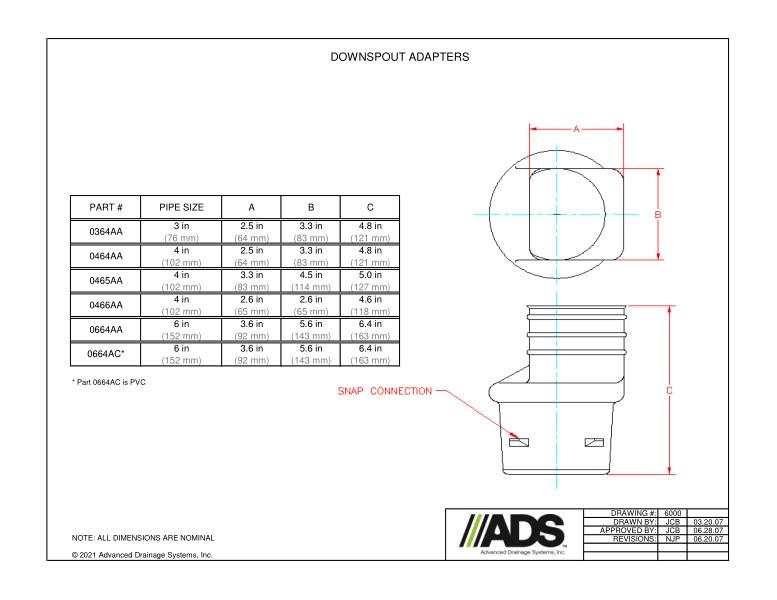

The illustrations of the downspout adapter shows side and top view of adapter with snap connection location.

A table with part number, pipe size and A//C dimensions is provided. All dimensions are nominal.
