8" Standard Locking Grate Assembly (Drain Basin) Nyloplast Detail

Filename:
8" Standard Locking Grate Assembly (Drain Basin) Nyloplast Detail.dwg

8" Standard Locking Grate Assembly (Drain Basin) Nyloplast Detail

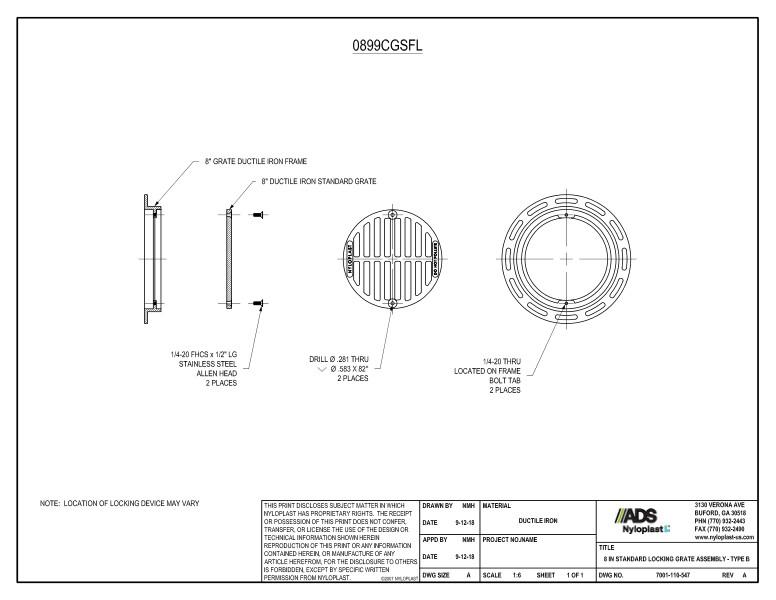

This document is the 8" Standard Locking Grate Assembly (Drain Basin) Nyloplast Detail. It shows the grate illustrations with descriptions.

The side view illustration shows the 8" grate ductile iron frame, 8" ductile iron standard grate and ¼-20 FHCS x 1/2” stainless steel allen head screws in 2 places. The top down view shows the grate drill hole. The top down view of the frame shows the ¼-20 thru located on frame with bolt tab in 2 places.

Location of locking device may vary.
