This document is the 6" x 4" - 8" x 4" - 8" x 6" - 10" x 8" - 12" x 6" - 12" x 8" Injection Molded 45 Degree Reducing Wyes (HDPE Dual Wall Injection Molded Wyes Fittings). A diagram with table and notes provided.

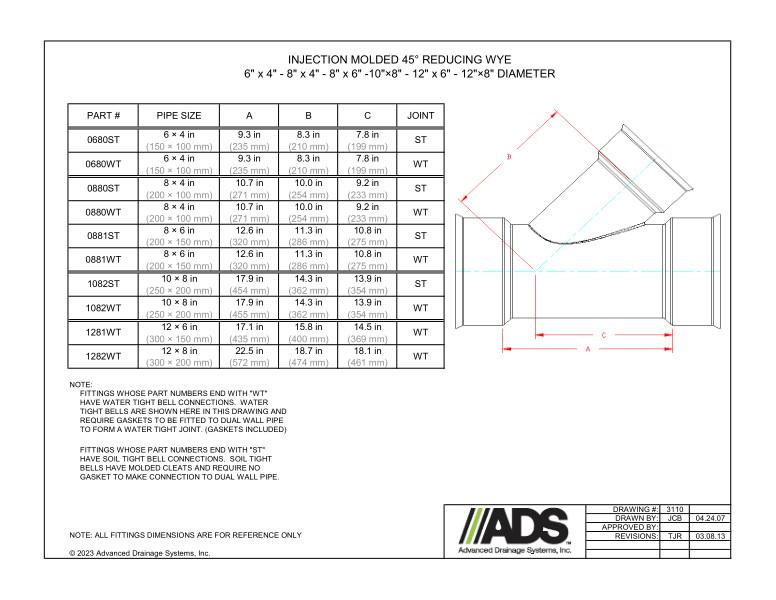

The illustration of the injection molded 45 Degree Reducing Wyes, 6" x 4" - 8" x 4" - 8" x 6" - 10" x 8" - 12" x 6" - 12" x 8" diameter shows the A/B/C dimensions.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

Fittings whose part numbers end with “WT” have water tight bell connections. Water tight bells require gaskets to be fitted to dual wall pipe to form a water tight joint. Gaskets are included.

Fittings whose part numbers end with “ST” have soil tight bell connections. Soil tight bells have molded cleats and require no gasket to make connection to dual wall pipe.

All fittings dimensions are for reference only.
