Nyloplast Envirohood for 18" Drain Basin - Outlet Size 4" to 12" Detail

Filename:
Nyloplast Envirohood for 18" Drain Basin - Outlet Size 4" to 12" Detail .dwg

Download Document (dwg)
Nyloplast Envirohood for 18" Drain Basin - Outlet Size 4" to 12" Detail

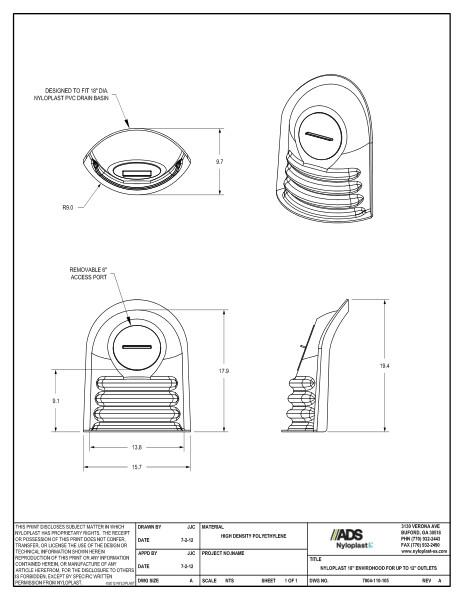

This document is the Nyloplast EnviroHood for 18” Drain Basin – Outlet Size up to 4” to 12” Detail. Details with dimensions and nyloplast illustrations shown.

A top down illustration shows the EnviroHood dimensions designed to fit 18” nyloplast PVC drain basin. A side view shows the removable 6” access port with dimensions.

Nyloplast Envirohood for 18" Drain Basin - Outlet Size 4" to 12" Detail
