8" Standard Locking Grate Assembly Nyloplast Detail

Filename:
8" Standard Locking Grate Assembly Nyloplast Detail.dwg

Download Document (dwg)
8" Standard Locking Grate Assembly Nyloplast Detail

This document is the 8" Standard Locking Grate Assembly Nyloplast Detail. It shows the grate illustrations with descriptions.

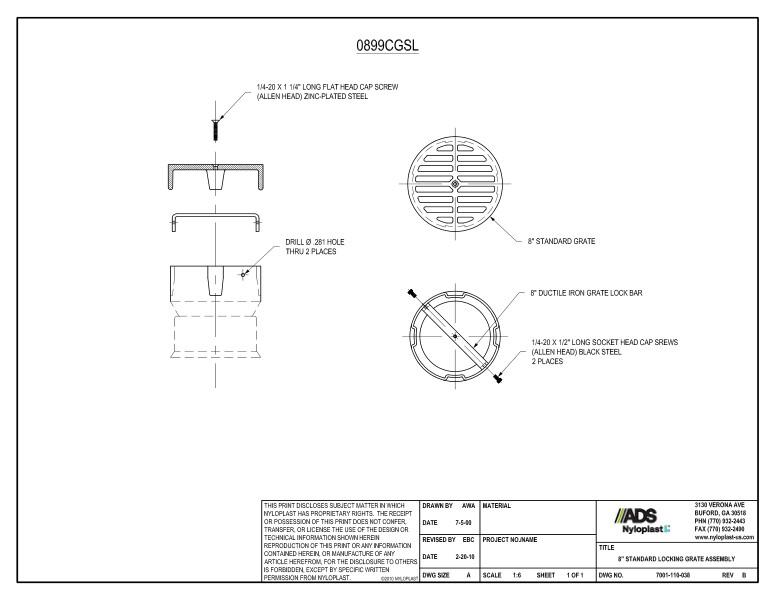

The top down view illustrations shows the 8" standard grate, 8" ductile iron grate lock bar and ¼-20 FHCS x 1/2” long socket head cap screws (allen head) black steel 2 places. The side view shows the ¼-20 FHCS x 1/2” long flat head cap screws (allen head) zinc-plated steel and drill hole in 2 places.

8" Standard Locking Grate Assembly Nyloplast Detail
