15" HP End Cap Nyloplast Detail

Filename:
15" HP End Cap Nyloplast Detail.dwg

Download Document (dwg)
15" HP End Cap Nyloplast Detail

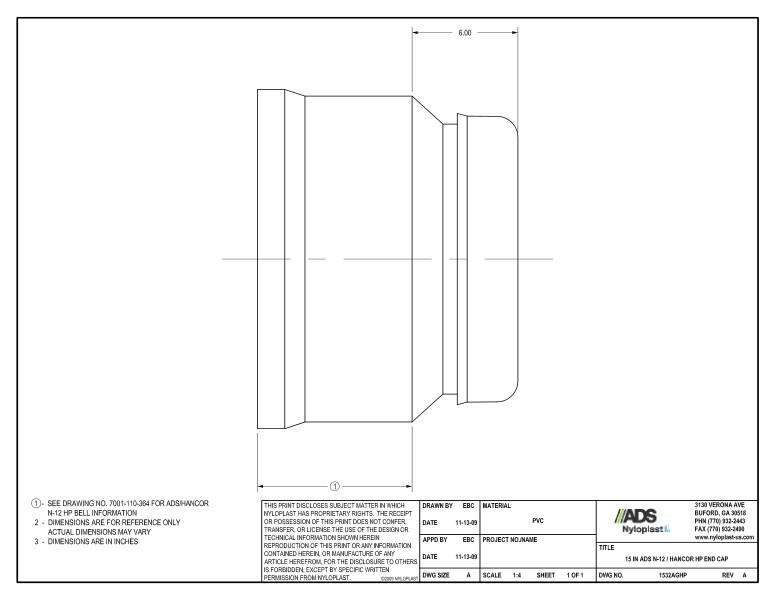

This document is the 15” HP End Cap Nyloplast Detail. End cap illustration shown with dimensions and notes.

The illustration shows the 6.00 dimension.

Note 1 refers to a drawing for ADS/Hancor N-12 HP Bell information. Note 2 states that dimensions are for reference only. Note 3 states that dimensions are in inches.

15" HP End Cap Nyloplast Detail
