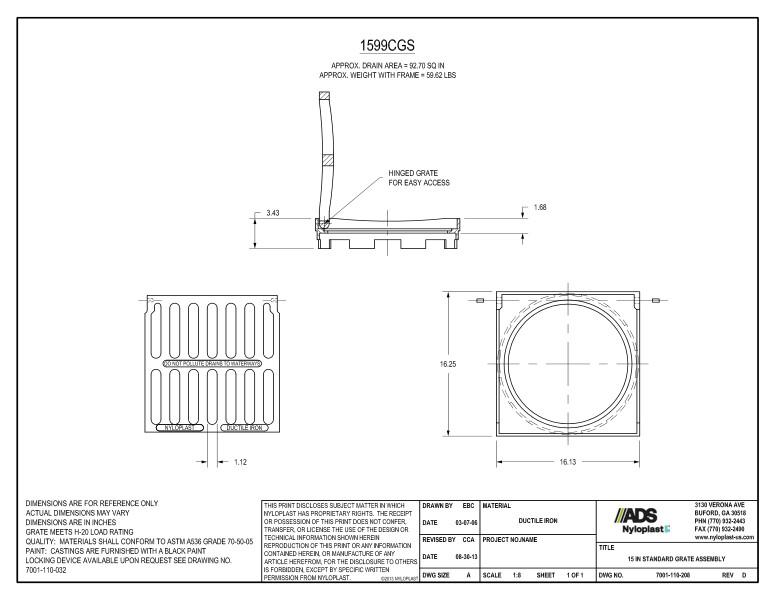

This document is the 15" Standard Grate Assembly Nyloplast Detail. It shows the nyloplast grate and frame with dimensions.

The illustrations show the nyloplast 15” grate with dimensions with approximate drain area of 92.70 SQ inches and approximate weight of 59.62 LBS. A top and side view of hinged grate for easy access is shown.

Notes detail that dimensions are for reference only and in inches. Grate meets H-20 load rating. Materials shall conform per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
