24" Inline Drain Quick Spec Installation Nyloplast Detail

Filename:
24" Inline Drain Quick Spec Installation Nyloplast Detail.pdf

24" Inline Drain Quick Spec Installation Nyloplast Detail

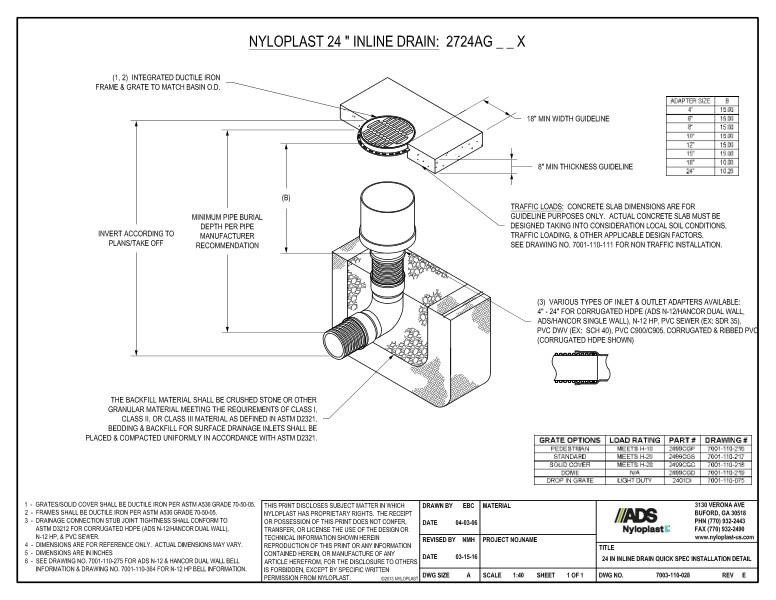

This document is the 24” Inline Drain Quick Spec Installation Nyloplast Detail. It shows the nyloplast inline drain with descriptions.

The illustration shows the integrated ductile iron frame & grate to match basin, minimum pipe burial, inverts, various types of inlet/outlet adapters, 18” minimum width/8” minimum thickness, traffic loads and backfill material made from crushed stone or other granular material.

A chart with various adapter sizes with B column, and a chart listing grate option, load rating, part and drawing numbers included.

Note 1 states that grates/solid cover shall be ductile iron per ASTM A536 grade 70-50-05. Note 2 states that frames shall be ductile iron per ASTM A536 grade 70-50-05. Note 3 explains that drainage connection stub joint tightness shall conform to ASTM D3212 for corrugated HDPE, N-12 HP & PVC sewer. Note 4 & 5 state that dimensions are for reference only and in inches. Note 6 directs to drawing for ADS N-12, Hancor dual wall bell and N-12 HP bell information.
