4" Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail

Filename:
4" Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail.pdf

Download Document (pdf) View in Browser
4" Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail

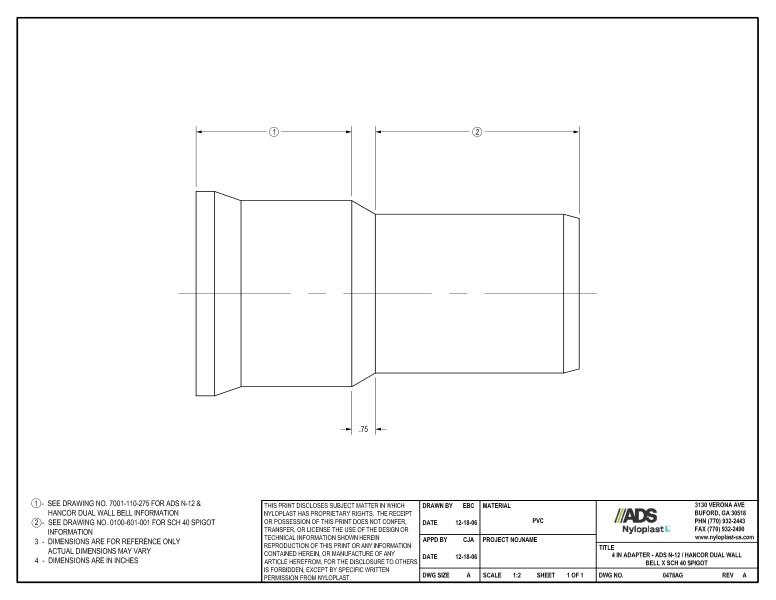

This document is the 4” Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references drawing for SCH 40 spigot information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

4" Adapter - N-12 Dual Wall Bell x SCH 40 Spigot Nyloplast Detail
