12" - 36" Fabricated Water Tight Gasket End Triple Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
12" - 36" Fabricated Water Tight Gasket End Triple Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings).pdf
![12" - 36" Fabricated Water Tight Gasket End Triple Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)](https://assets.adspipe.com/m/1bbc2a18dc731965/webimage-12-36-Fabricated-Water-Tight-Gasket-End-Triple-Manifolds-HDPE-Dual-Wall-Fabricated-Manifolds-Fittings.jpg)
This document is the 12" - 36" Fabricated Water Tight Gasket End Triple Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.

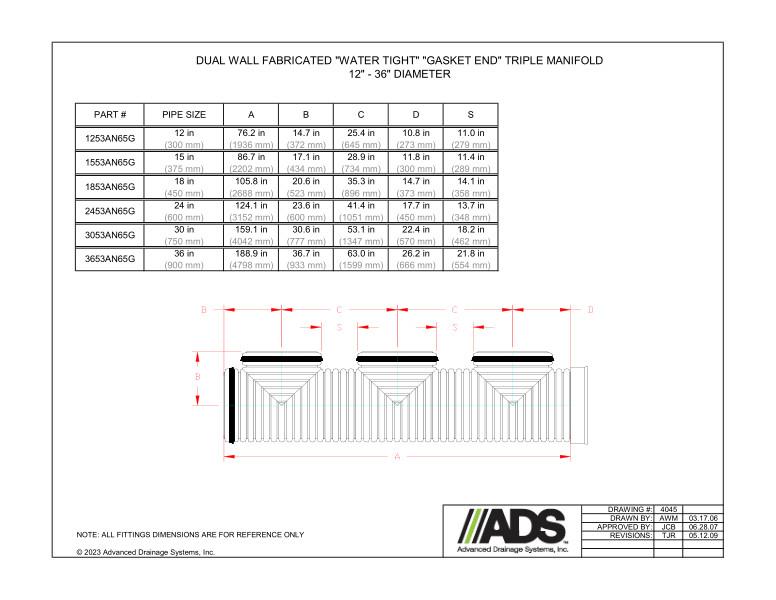

The dual wall fabricated “Water Tight” “Gasket-End” Triple Manifold 12" - 36" diameter is shown in a diagram that shows A/B/C/D/S dimensions.
A table with the information for part number, pipe size and A/B/C/D/S sizes is provided.
All fittings dimensions are for reference only.
