24 x 4 N-12 Dual Wall Wye with Gasketed SWR Bell Nyloplast Detail
Filename:
24 x 4 N-12 Dual Wall Wye with Gasketed SWR Bell Nyloplast Detail.dwg
![24 x 4 N-12 Dual Wall Wye with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/1cd315325a2c6c11/webimage-24-x-4-N-12-Dual-Wall-Wye-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

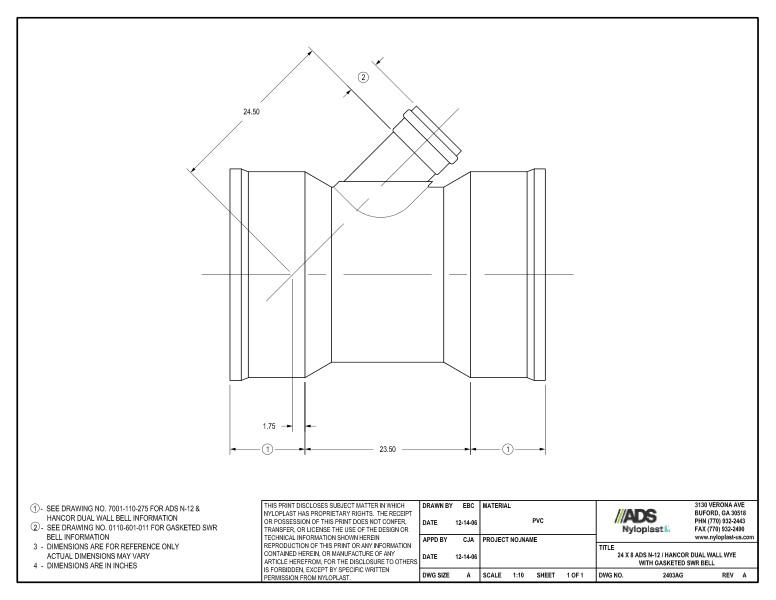

This document is the 24 x 4 N-12 Dual Wall Wye with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
