12" - 24" StormTech Dual Wall Fabricated Soil Tight Elbows (StormTech Dual Wall HDPE Fittings)

This document is the 12" - 24" StormTech Dual Wall Fabricated Soil Tight Elbows (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

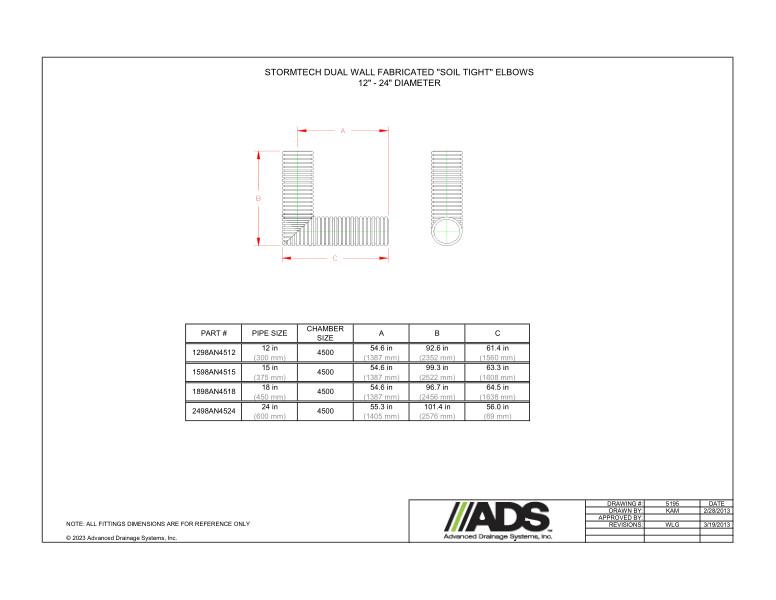

StormTech Dual Wall Fabricated “Soil Tight” Elbows 12" - 24" diameter shows the elbow side view diagram and opening diagram with A/B/C dimensions.

The table lists the part number, pipe size, chamber size and A/B/C dimension values.

All fittings dimensions are for reference only.
