2' x 2' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail

Filename:
2' x 2' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail.dwg

Download Document (dwg)
2' x 2' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail

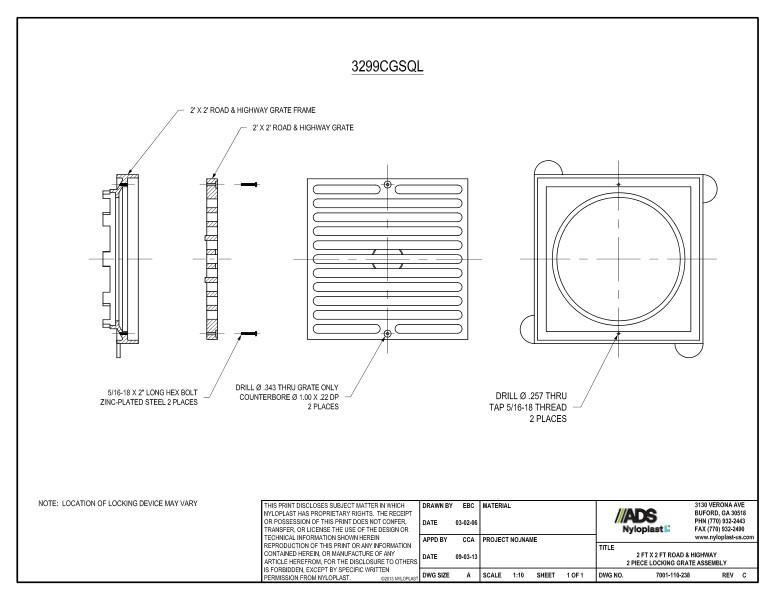

This document is the 2' x 2' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail. Grate and frame illustrations with descriptions shown.

The details show the various grates and frames. Featured are the side angles of the 2' x 2' Road & Highway grate frame and the 2' x 2' Road & Highway grate with long hex bolt zinc plated steel. Top views of each show the drill positions.

A note states that location of locking device may vary.
