12" AdvanEdge Fabricated Tee with Side Outlet (AdvanEdge Fittings)

Filename:
12" AdvanEdge Fabricated Tee with Side Outlet (AdvanEdge Fittings).pdf

Download Document (pdf) View in Browser
12" AdvanEdge Fabricated Tee with Side Outlet (AdvanEdge Fittings)

This document is the 12” AdvanEdge Fabricated Tee with Side Outlet (AdvanEdge Fittings). Diagrams with table provided.

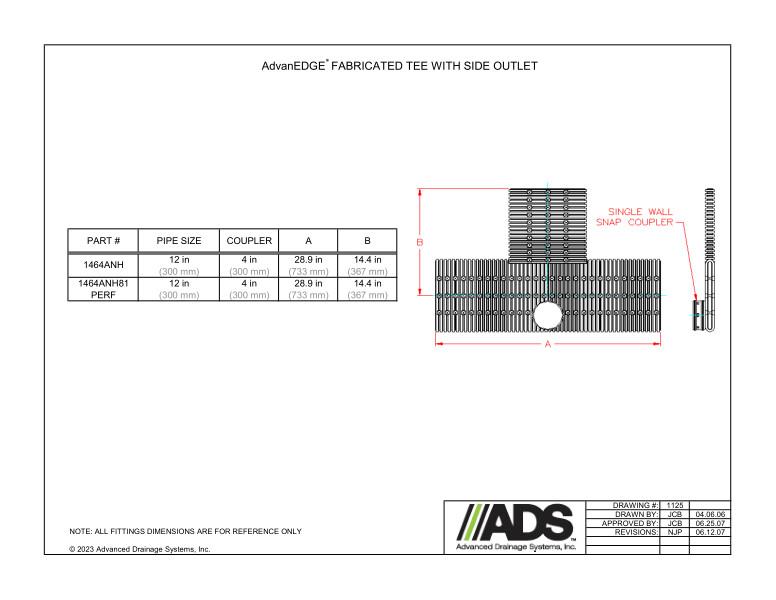

The AdvanEDGE Fabricated Tee with Side Outlet diagram shows the A/B dimensions. A single wall snap coupler detail included.

The table provides the values for Part number, pipe size and A/B dimensions.

All fittings dimensions are for reference only.
