24 x 15 HP Tee Nyloplast Detail

Filename:
24 x 15 HP Tee Nyloplast Detail.dwg

This document is the 24 x 15 HP Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

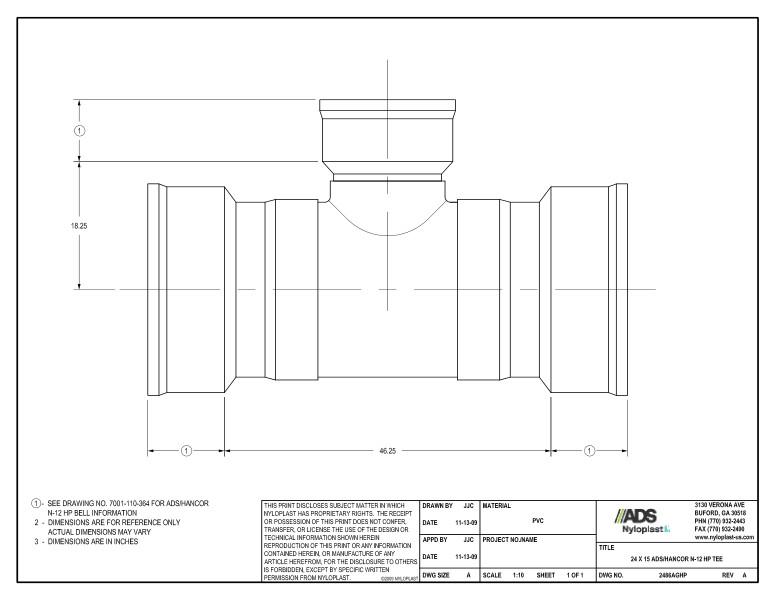

An illustration showing the dimensions is provided.
