2' x 3' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail

Filename:
2' x 3' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail.dwg

Download Document (dwg)
2' x 3' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail

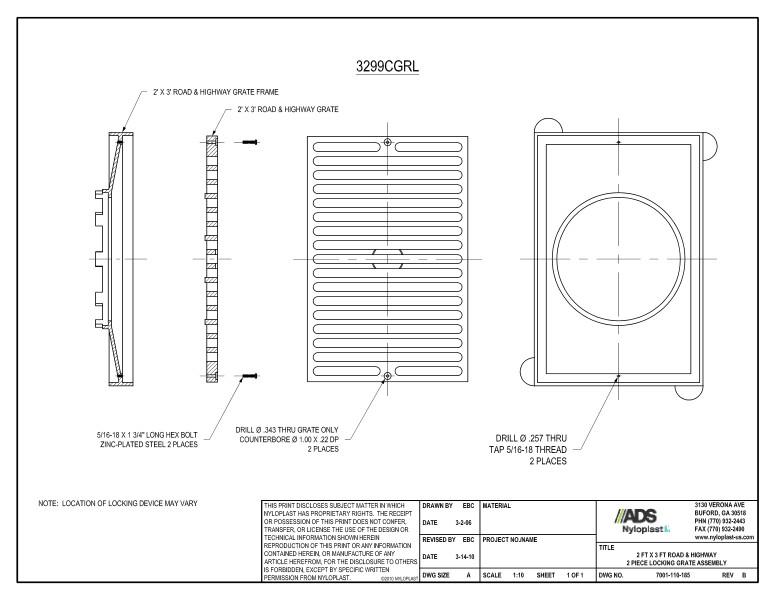

This document is the 2' x 3' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail. Grate and frame illustrations with descriptions shown.

The details show the side angle of the 2' x 3' Road & Highway grate and the 2' x 3' Road & Highway frame. Top views of the grate and frame show the drill points.

A note states that the location of locking device may vary.

2' x 3' Road & Highway 2 Piece Locking Grate Assembly Nyloplast Detail
