This document is the 10" Standard Locking Grate Assembly Nyloplast Detail. It shows the grate illustrations with descriptions.

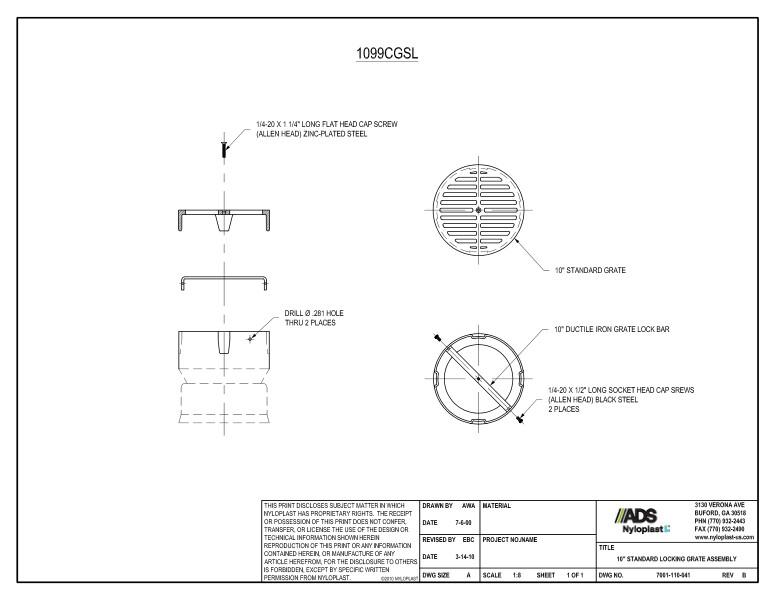

The top down view illustrations shows the 10" standard grate, 10" ductile iron grate lock bar and ¼-20 x 1/2” long socket head cap screws (allen head) black steel 2 places. The side view shows the ¼-20 x 1 1/4” long flat head cap screws (allen head) zinc-plated steel and drill hole in 2 places.
