10" N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail

Filename:
10" N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail.dwg

Download Document (dwg)
10" N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail

This document is the 10” N-12 Dual Wall Elbow – 45 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

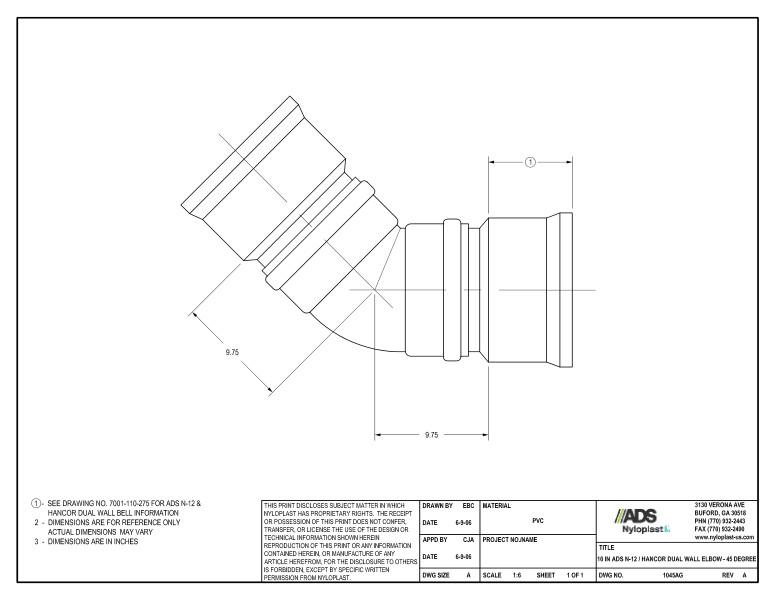

An illustration showing the dimensions is provided.

10" N-12 Dual Wall Elbow - 45 Degree Nyloplast Detail
