This document is the Drain Basin with Dome Grate Quick Spec Installation Nyloplast Detail. It shows the drain basin illustrations with descriptions.

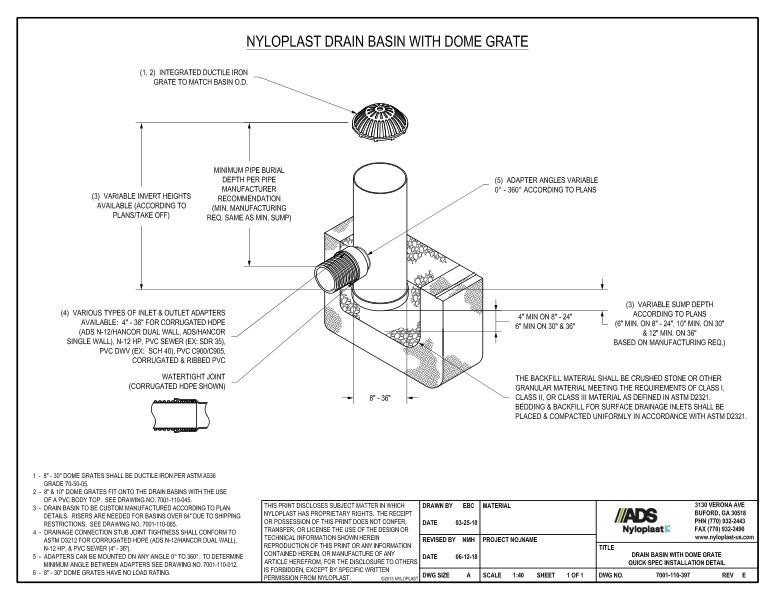

The illustration shows the integrated ductile iron frame & grate to match basin, minimum pipe burial, variable invert heights, various types of inlet & outlet adapters, adapter angles variable, watertight joint, variable sump depth and backfill material that should be crushed stone or other granular material.

Note 1 states that 8” – 30” dome grates shall be ductile iron per ASTM A536, grade 70-50-05. Note 2 states that 8” – 10” dome grates fit into the drain basin with the use of a PVC body top. Note 3 says that drain basin to be custom manufactured. Note 4 clarifies that drainage connection stub joint tightness shall conform to ASTM D3212 for corrugated HDPE. Note 5 confirms that adapters can be mounted at any angle. Note 6 states that 8” – 30” dome grates have no load rating.
