204E 12-60 HDPE N-12 Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail

Filename:
204E 12-60 HDPE N-12 Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail.dwg

Download Document (dwg)
204E 12-60 HDPE N-12 Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail

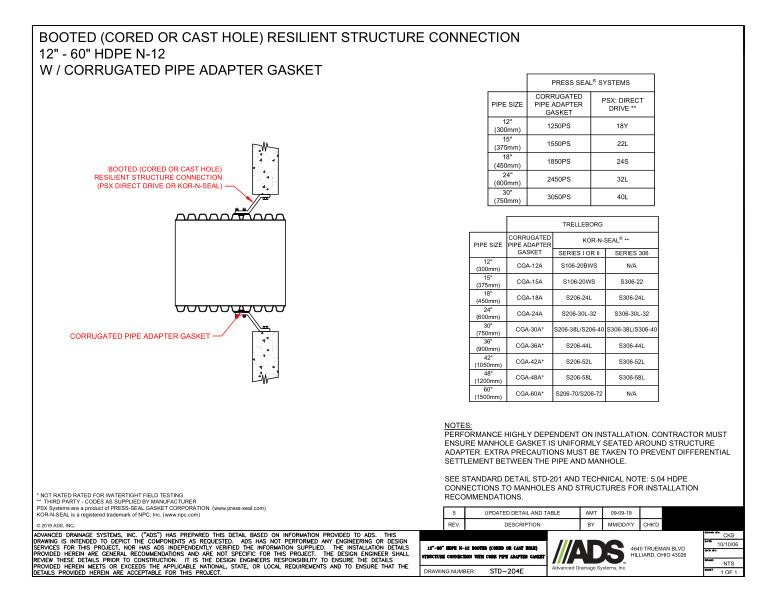

This document is the 204E 12-60 HDPE N-12 Booted (Cored or Cast-Hole) Structure Connection with Corr Pipe Adapter Gasket Detail. A detail and charts provided.

The detail shows the Booted (Cored or Cast-Hole) resilient structure connection and the corrugated pipe adapter gasket.

One chart features the Press Seal Systems with values for pipe size, corrugated pipe adapter gasket and PSX: Direct Drive.

A second chart features the Trelleborg information for pipe size, corrugated pipe adapter gasket and Kor-N-Seal Series.

Notes recommend performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter.

204E 12-60 HDPE N-12 Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail
