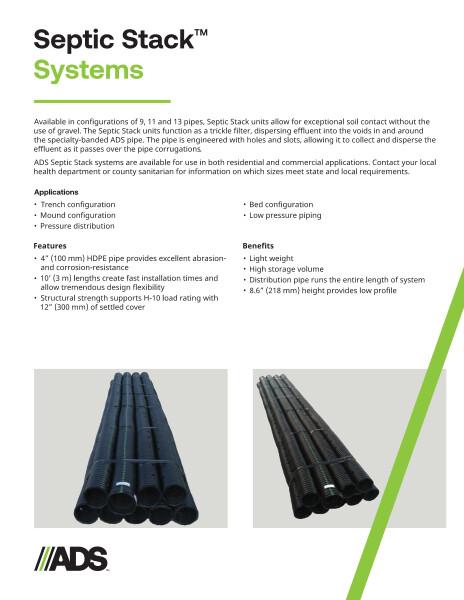

This document is the Septic Stack Product Sheet. Applications, features, benefits and ADS Septic Stack Product Sheet specifications provided.

The Septic Stack System is available in configurations of 9, 11 and 13 pipes. Septic Stack units allow for soil contact without the use of gravel. It functions as a trickle filter, dispersing effluents into the voids in and around the ADS pipe.

The pipe is engineered with holes and slots, allowing it to collect and disperse the effluent over pipe corrugations. The systems are available for both residential and commercial uses.

Applications are trench/mound/bed configurations, pressure distribution and low pressure piping.

Features are 4” HDPE pipe provides abrasion and corrosion resistance. 10’ lengths create fast installation times and design flexibility. Structural strength supports H-10 load rating with 12” settled cover.

Benefits are that it’s light weight, has high storage volumes, distribution pipe runs length of system and 8.6” height provides a low profile.

The Septic Stack Pipe specifications provide details on scope, stack requirements, material properties, installation, septic fabric properties and stack dimensions. A chart is provided for stack dimensions for the 9, 11 and 13 pipe bundles. Void perforation pattern, distribution perforation patterns and 9, 11 and 13 bundle cross sections figures provided.
