207B 12-60 HP Storm Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail

Filename:
207B 12-60 HP Storm Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail.pdf

Download Document (pdf) View in Browser
207B 12-60 HP Storm Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail

This document is the 207B 12-60 HP Storm Booted (Cored or Cast Hole) Structure Connection with Corr Pipe Adapter Gasket Detail. A detail and chart provided.

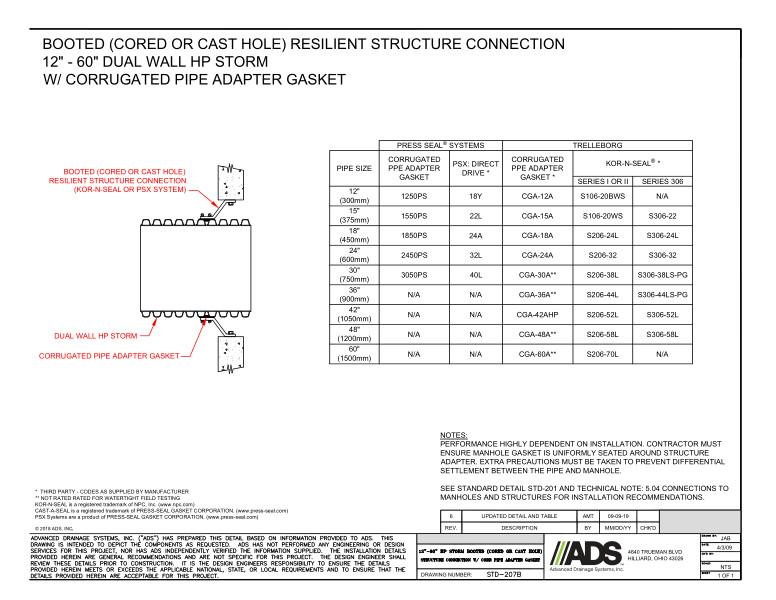

The detail shows the Booted (Cast-In) resilient structure connection, Dual Wall HP Storm and the corrugated pipe adapter gasket.

The chart features the Press Seal Systems with values for pipe size, corrugated pipe adapter gasket and PSX: Direct Drive. The Trelleborg values for corrugated PPE adapter gasket and Kor-N-Seal are shown.

Notes recommend performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter.
