This document is the 24" - 36" Mitered Joint Pusher (HDPE Dual Wall Miscellaneous Fittings). Diagrams with descriptions and table included.

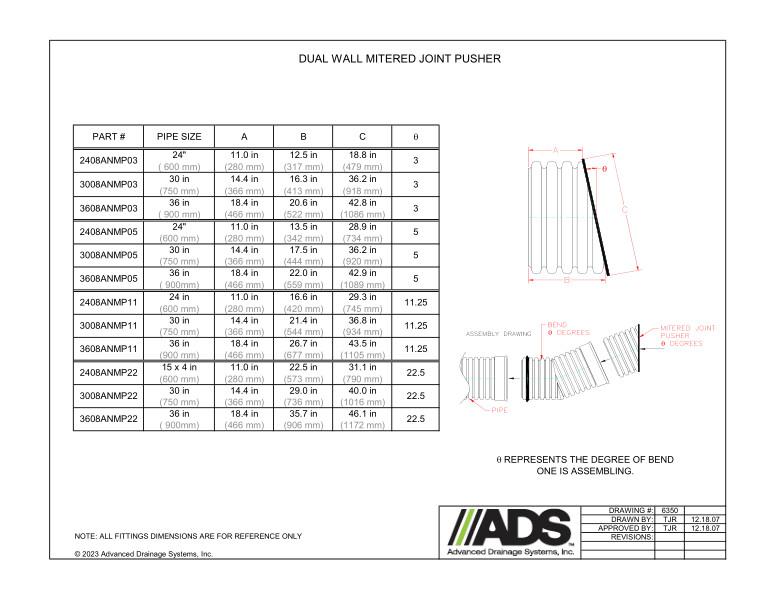

The dual wall mitered joint pusher diagram shows the side view with A/B/C/0 dimensions. The assembly drawing shows the pipe, bend 0 degrees, mitered joint pusher-0 degrees with 0 representing the degree of bend one is assembling.

The table lists the part number, pipe size and A/B/C/0 dimension values.

All fittings dimensions are for reference only.
